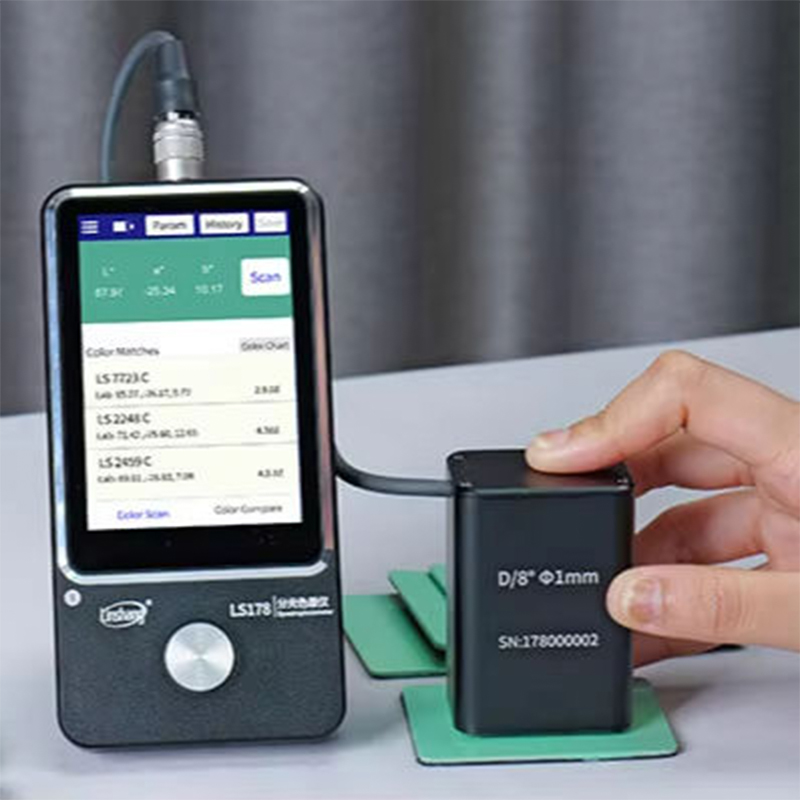

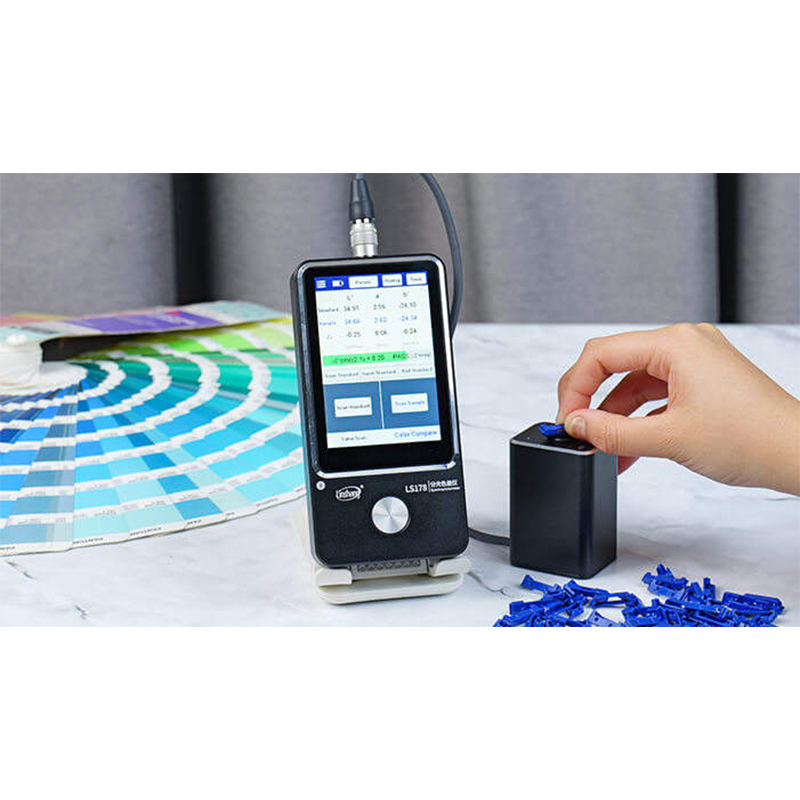

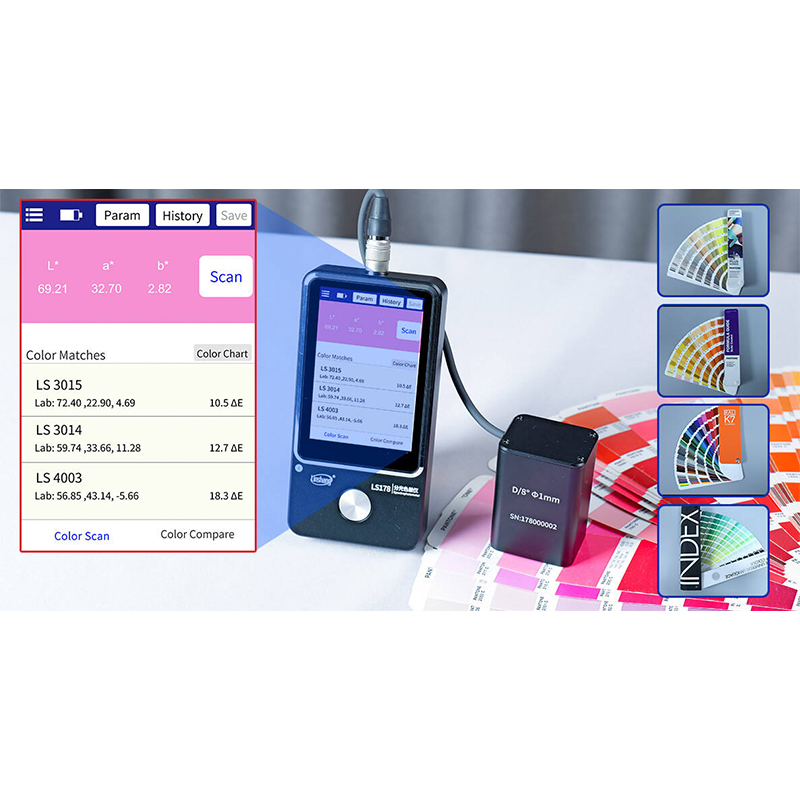

1. It comes with multiple electronic color charts, allowing users to quickly match the closest color chart number when measuring color, with a color chart matching accuracy exceeding 90%. 2. The spectrophotometer has a repeatability of E*ab ≤ 0.03 and a measurement accuracy of 0.01, meeting the first-level standards of the National Institute of Metrology. 3. The instrument offers a variety of color spaces and color difference formulas to meet the needs of various industries. 4. Combined with the host computer software, it offers enhanced color difference statistical analysis capabilities and can import and export instrument-stored data. 5. The full-spectrum LED light source ensures sufficient spectral distribution within the visible light range, effectively avoiding the spectral loss in specific wavelengths associated with traditional LED light sources, providing more accurate measurement results.
Illumination Geometry: D/8, Specular Component Included (SCI) Light Source: Full-spectrum LED Spectral Range: 400-700 nm Spectral Interval: 10 nm Measurement Aperture: 0.1 mm Measurement Conditions: Illuminant D65, Field of View: 10° Measurement Time: Approximately 1 second Color Spaces: CIE Lab, Luv, LCh, Yxy, CMYK, RGB, HSL, HSV, WI-98, WI-Gauz, WI-R457, WI-Hunter, YI-98, Reflectance Color Difference Formulas: Δe*ab, Δe*uv, Δe*94, Δe*cmc (2:1), Δe*cmc (1:1), Δe*00, Δe*cmc (1.4:1) Repeatability: Standard deviation of Δe*ab within 0.03 (Measurement Conditions: Average of 30 measurements on a white board at 3-second intervals after calibration) Inter-instrument Agreement: E* Ab <= 0.4, based on average. 12 BCRA Series II tiles Dimensions: Main unit: 132 × 66.6 × 20 mm (L * W * H) Probe: 45.4 × 37.3 × 64.1 mm (L * W * H) Weight: Approximately 390 g Power supply: Rechargeable lithium battery 3.7V @ 4000 mAh, capable of 10,000 continuous measurements on a full charge Display: 480 x 320 dot IPS color screen Languages: Simplified Chinese, English Charging port: USB (Type-C) Operating temperature range: 0 to 45°C, relative humidity 0 to 85% (non-condensing) Storage temperature range: -25 to 55°C, relative humidity 0 to 85% (non-condensing)
