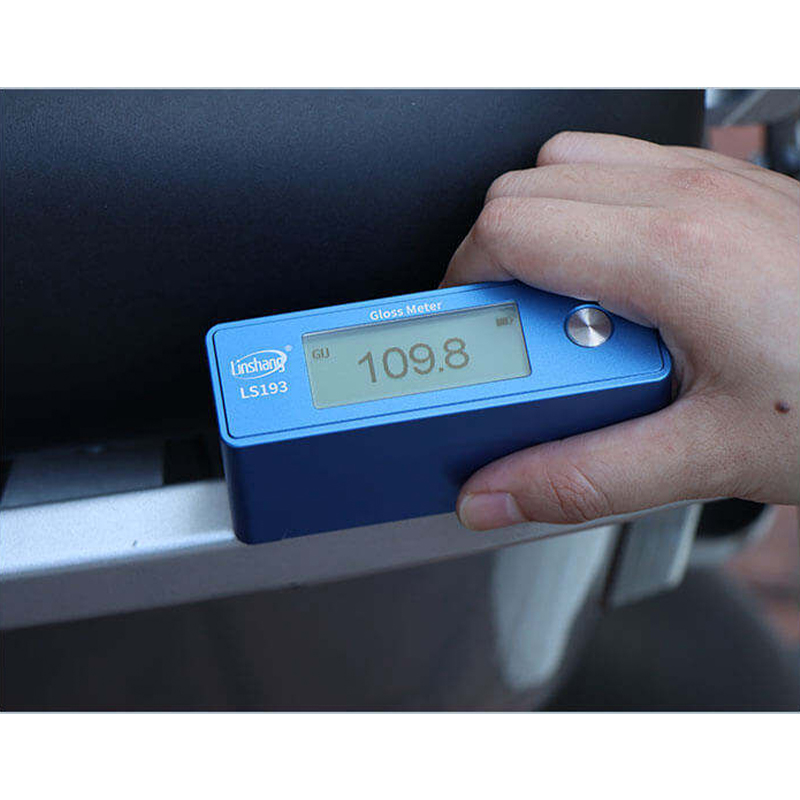

1. Easy to place and read without any button operation. 2. The instrument uses a D65 illuminant, and the receiver's spectral response curve conforms to the photopic vision V(λ) function, ensuring more accurate measurement of colored objects. 3. The LS193 gloss meter can be calibrated by any national metrology institution and complies with the Class 1 gloss meter standard of JJG696-2002. 4. It features dual measurement modes for different applications. Normal mode allows you to quickly read the measurement results after placing the instrument on the sample surface. QC mode automatically determines whether the result is acceptable. 5. Equipped with PC software (Windows only), the LS193 can measure materials and then generate and print test reports by connecting to the PC software.
Measuring Angle: 60° Measuring Spot: 1.5 mm * 3 mm Minimum Test Material Size: 3 mm * 6 mm Test Range: 0-1000 GU Resolution: 0.1 GU Repeatability: 0-120 GU: ± 0.2 GU 120-1000 GU: ± 0.2% Reproducibility: 0-120 GU: ± 0.5 GU 120-1000 GU: ± 0.5% Zero Error: 0.1 GU Indicated Error: 0-120 GU: ± 1.5 GU 120-1000 GU: ± 1.5% Battery Capacity: Rechargeable Li-Ion 3.7V @ 1000mAh Display: 192×64 System Language: Chinese (Simplified), English Charging Port: USB (Type-C) Data Port: USB Dimensions: 102*35* 51mm Weight: Approximately 300g Operating Temperature: 10°C to 45°C, 0% to 85% relative humidity (non-condensing) Storage Temperature: -10°C to 60°C, 0% to 85% relative humidity (non-condensing)
